Dress pack for robotic energy and data supply

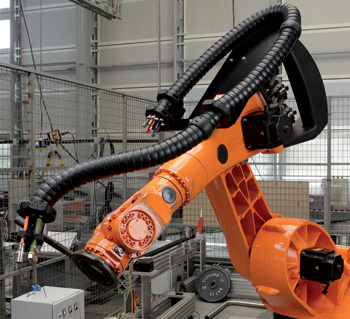

Igus has developed a new universal energy and data supply dress pack module called the Triflex RS, specifically for use in robotic applications in very cramped conditions. This multi-axis robotic dress pack energy chain is always guided parallel and close to the robot arm, preventing a loop forming for cables becoming strained at the robot head.
The low profile dress pack module can be mounted directly to the existing fastening points on the robot. The moving end of energy chain is attached to the sixth axis with a mounting bracket. This dress pack system allows general movements, so no specific programming is required. Thanks to its compact design, the dress pack system can even be used if there is a valve cluster or distributor box on the third axis.
In addition, Igus also has new protective jackets available for the dress pack. These protect the dress pack from liquid metal splashes or other materials. This is important in hot conditions such as foundries, or for paint or sealing applications. The dress pack protective jackets are pulled over the energy chain, and held in place by a velcro fastener or elastic, ensuring the dress pack chain’s long service life.
Finally, Igus has also developed the E4.1 energy chain dress pack for safe supply on the seventh axis. It allows high flexibility and robustness in all robot dress pack applications. Assembly times for the dress pack can be reduced by up to 80 percent thanks to improved opening and separating bridges. A quick-locking feature ensures little force is required for opening and closing the dress pack chain, even for very fully loaded chains. Special design, including the ‘tongue and groove’ link joint ensures very high rigidity for the dress pack even with strong lateral forces.
Visit the Igus website for more information on the Triflex RS dress pack.
