Güdel pivot arm robot overcomes height restrictions

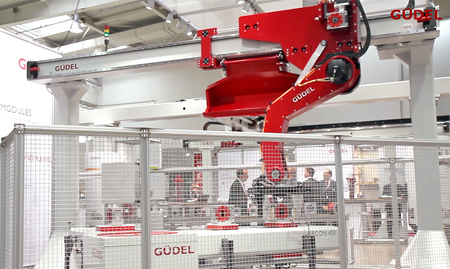

Güdel’s new PA-5 pivot arm gantry robot concept retains all of the benefits of a traditional gantry robot – reach, payload and a small footprint – but with the added advantage of being able to operate in areas with a low ceiling.
The vertical axis of this new gantry robot is a pivoting arm which really comes into its own in working environments where there are low ceilings or other height restrictions, such as operating under a beam. The PA-5 however, can still lift and transport the same loads as a conventional vertical axis.
A conventional vertical axis requires the same headspace above the main beam as the vertical stroke beneath it. By using the rigid and robust pivoting vertical axis we virtually eliminate the headspace requirement, and compared to the alternative for restricted spaces, a telescopic axis, we save more space and the payload is up to 25% greater. The PA-5 can also be fitted with an optional mobile overhead guard, which eliminates the need for overhead safety guards for the entire length of the horizontal axis.
The Güdel PA-5 gantry, in line with all other Güdel linear motion components, modules and systems, is ideally suited for use across a wide range of applications and industry sectors, such as machine tool loading, palletizing or press-loading. The key advantages of Güdel linear gantries, speed, accuracy and good use of floor space always remain.
