Spacious cable carrier for large cable bundles

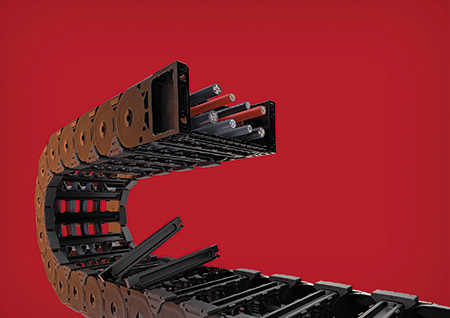

The new size UA1775 cable carrier from Kabelschlepp provides optimum protection and guiding for medium and large cable bundles. The cable carrier system also features particularly smooth running and a long service life. The well-known and popular design of the “quick opening” cable carrier was retained for the new size.
The model of the UNIFLEX Advanced cable carriers features an inner height of 56 mm and inner widths of 100 to 250 mm – enough space for applications with numerous cables and hoses. The four-part chain links are designed so that the separate parts require only a minimum of storage volume, which simplifies logistics and saves resources. The new cable carrier type with bending radii from 90 to 340 mm runs very smoothly thanks to the short pitch of 77.5 mm. The low-torsion design ensures a sturdy cable carrier body with low wear and a long service life. To protect the environment, Kabelschlepp Metool manufactures this cable carrier with up to 35 % recycled regranulate.
The cable routing can be used with or without pretension as well as unsupported and gliding on extended travel lengths. High speeds and acceleration are also possible.
As for all items from the UNIFLEX Advanced series, this size also allows for fast, simple and easy installation of cables and hoses: The crossbars can be opened and closed quickly – with just two steps in each case. A simple screwdriver is the only tool required. Particularly convenient: the crossbar remains attached to the chain link even when open. If necessary, the crossbar can be released from the chain link with a simple twist.
