RT choke series mitigates EMI issues in robotics
Schaffner has extended its range of filtering solutions for suppressing electromagnetic interference (EMI) with a new common-mode choke series designed for use with mid-size power range drives frequently used in robotics and motor drives.

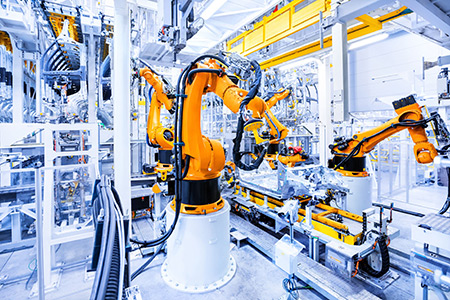

If not dealt with, EMI could cause robots to behave with unexpected movements, representing a serious risk to factory workers as well as the possibility of costly damage. In addition, EMI could interfere with functional-safety systems, such as the false triggering of a safety mechanism, leading to unnecessary equipment stoppages or safety protection systems failing to operate when required.
By fitting this new current-compensated choke – which is capable of operating at currents up to 63A – it’s now easier than ever to prevent EMI noise from going to power lines and disturbing the functioning of other systems. Ensuring improved immunity against grid disturbances, the RT choke series suppresses EMI noise in PCB integrated filter designs.
As a global leader in electromagnetic solutions, Schaffner developed the new choke series to meet the growing use of automation and electrification across a range of industries. Designed to help minimise costs, the addition of the RT choke series will also support design engineers working across a range of industrial segments.
The choke is also ideal for AC and DC filtering up to 600V in fast chargers and charging stations, uninterruptible power supplies (UPSs), switch mode power supplies (SMPSs), photovoltaic inverters, industrial LED lighting, medical and laboratory equipment.

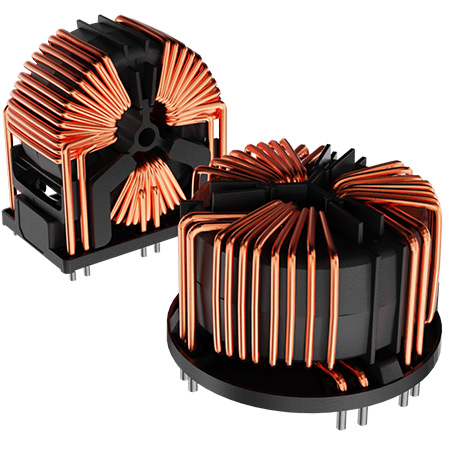

Offering a choice of horizontal or vertical PCB mounting options, the RT choke series is compact and lightweight. Available in two- or three-wire configurations, the choke series also provides a broad range of inductance ratings and features a UL-approved insulation system, excellent winding insulation and standardized footprint, enabling designers to swap chokes and alter specifications without having to make design changes. Custom-specific versions of the choke are available on request.
Felix Wedel, product manager at Schaffner, explains: “As the world changes it is important that we keep developing the best solutions for our customers. For product designers in this sector, a flexible range of mounting possibilities and cost-effective PCB designs are crucial in order to deliver a reliable and cost-effective EMC solution. The RT choke series has proved to be a popular and reliable solution for many sectors and a choke capable of operating at higher currents will be a valuable addition to the range.
“As is often the case, it is best to seek advice from the experts to identify any potential EMC challenges and find solutions as early as possible in the design process.”
