Compact 3D vision camera has 30mm baseline
Scorpion Vision has extended its 3D vision camera range with the compact Stinger 3D vision camera that combines a 30mm baseline with a random pattern projection (RPP) laser, generating images in real-time. Easy to mount, the compact size and smaller baseline make the new 3D vision camera an ideal replacement for 2D cameras in assembly verification and object location applications where true 3D vision is needed.
The compact IP64 3D vision camera is designed to work at a distance of between 100mm and 400mm with a corresponding 3D field of view of typical range of 100x100x75 mm to 200x200x150mm with an expected z-resolution of 0.1 to 0.3mm.

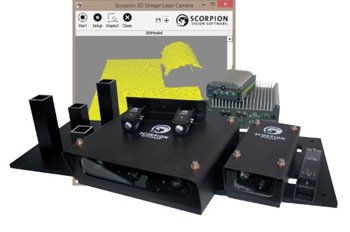

The 3D vision camera package contains a Scorpion Stinger control card, two GigE cameras, RPP laser and high power LED and a 30mm baseline. The 3D vision camera is compatible with Scorpion Compact Vision, Scorpion Vision Software and the ‘One Push Calibration’ device for automatic, fast and accurate 3D calibration of the 3D vision camera.
The 3D vision camera is supported by the complete range of Scorpion Stinger hardware, including the smallest Scorpion Ultra Compact PC (149x105x44mm), the versatile Scorpion Compact PC with expansion slots, and the Scorpion Embedded PC with 5 GigE ports and a powerful i7 CPU. For the most demanding 3D vision camera applications, Scorpion offers a real Industrial PC with the latest hexacore CPU from Intel.
Scorpion Compact Vision System concept provides powerful machine vision for 2D and 3D applications without the need of programming skills. It is claimed to solve almost any tasks within 2D and 3D robot vision, label inspection, assembly verification, colour identification and gauging.
Visit the Scorpion Vision website for more information on the Scorpion 3D vision camera technology, including the new compact 3D vision camera with 30mm baseline.
